StatefulSets

The Difference Between a Statefulset And a Deployment

Stateless application

  • A stateless application is one that does not care which network it is using, and it does not need permanent storage and can be scaled up and down without the need to re-use the same network or persistence.
  • Deployment is the suitable kind for Stateless applications.
  • The most trivial example of stateless app is a Web Server.

Stateful application

  • Stateful applications are apps which in order to work properly need to use the same resources, such as network, storage etc.
  • Usually with Stateful applications you will need to ensure that pods can reach each other through a unique identity that does not change (e.g., hostnames, IP).
  • The most trivial example of Stateful app is a database of any kind.

Stateful Notes

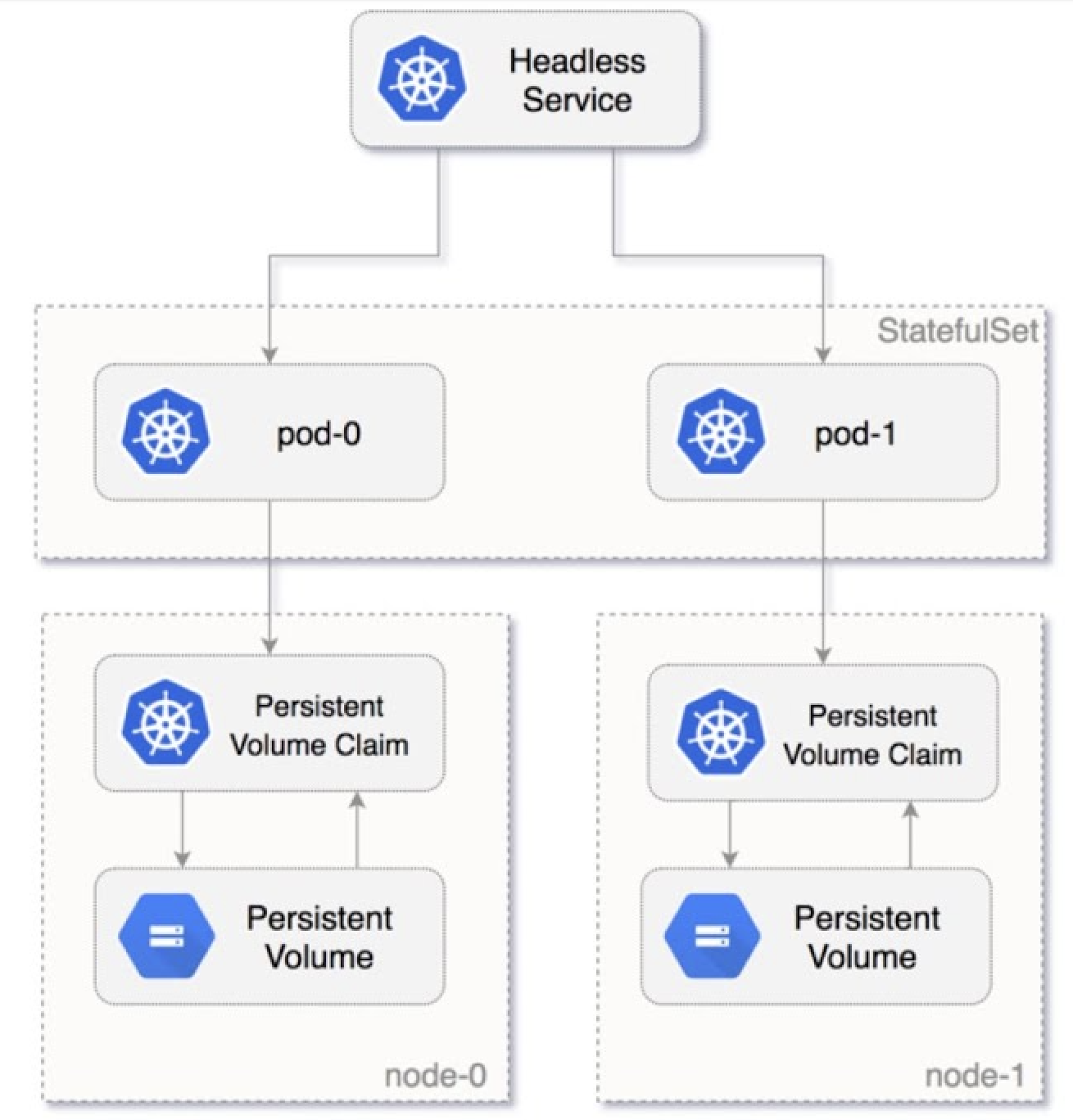

  • Like a Deployment, a StatefulSet manages Pods that are based on an identical container spec.
  • Unlike a Deployment, a StatefulSet maintains a sticky identity for each of their Pods.
  • These pods are created from the same spec, but are not interchangeable: each has a persistent identifier that it maintains across any rescheduling.
  • Deleting and/or scaling down a StatefulSet will not delete the volumes associated with the StatefulSet. This is done to ensure data safety.
  • StatefulSet keeps a unique identity for each Pod and assign the same identity to those pods when they are rescheduled (update, restart etc).
  • The storage for a given Pod must either be provisioned by a PersistentVolume provisioner, based on the requested storage class, or pre-provisioned by an admin.
  • StatefulSet manages the deployment and scaling of a set of Pods, and provides guarantees about the ordering and uniqueness of these Pods.
  • A stateful app needs to use a dedicated storage.

Stable Network Identity

  • A Stateful application node must have a unique hostname and IP address so that other nodes in the same application know how to reach it.
  • A ReplicaSet assign a random hostname and IP address to each Pod. In such a case, we must use a service which exposes those Pods for us.

Start and Termination Order

  • Each StatefulSet follows this naming pattern: $(statefulSet name)-$(ordinal)
  • Stateful applications restarted or re-created, following the creation order.
  • A ReplicaSet does not follow a specific order when starting or killing its pods.

StatefulSet Volumes

  • StatefulSet does not create a volume for you.
  • When a StatefulSet is deleted, the respective volumes are not deleted with it.

To address all these requirements, Kubernetes offers the StatefulSet primitive.

01. Create namespace and clear previous data if there is any

# If the namespace already exist and contains data form previous steps, lets clean it
kubectl delete namespace codewizard

# Create the desired namespace [codewizard]
$ kubectl create namespace codewizard
namespace/codewizard created

02. Create and test the Stateful application

  • In order to deploy the Stateful set we will need the following resources:

  • ConfigMap

  • Service
  • StatefulSet

  • PersistentVolumeClaim orPersistentVolume`

  • All the resources including kustomization script are defined inside the base folder

apiVersion: v1
kind: ConfigMap
metadata:
  name: postgres-config
  labels:
    app: postgres
data:
  # The following names are the one defined in the officail postgres docs

  # The name of the database we will use in this demo
  POSTGRES_DB: codewizard
  # the user name for this demo
  POSTGRES_USER: codewizard
  # The password for this demo
  POSTGRES_PASSWORD: admin123

  • Service.yaml

    apiVersion: v1
kind: Service
metadata:
  name: postgres
  labels:
    app: postgres
spec:
  selector:
    app: postgres
  # Service of type nodeport
  type: NodePort
  # The deafult port for postgres
  ports:
    - port: 5432

  • PersistentVolumeClaim.yaml

kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: postgres-pv-claim
  labels:
    app: postgres
spec:
  # in this demo we use GCP so we are using the 'standard' StorageClass
  # We can of course define our own StorageClass resource
  storageClassName: standard

  # The access modes are:
  #   ReadWriteOnce - The volume can be mounted as read-write by a single node
  #   ReadWriteMany - The volume can be mounted as read-write by a many node
  #   ReadOnlyMany  - The volume can be mounted as read-only  by many nodes
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Gi

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgres
spec:
  replicas: 1
  # StatefulSet must contain a serviceName
  serviceName: postgres
  selector:
    matchLabels:
      app: postgres # has to match .spec.template.metadata.labels
  template:
    metadata:
      labels:
        app: postgres # has to match .spec.selector.matchLabels
    spec:
      containers:
        - name: postgres
          image: postgres:10.4
          imagePullPolicy: "IfNotPresent"
          # The default DB port
          ports:
            - containerPort: 5432
          # Load the required configuration env values form the configMap
          envFrom:
            - configMapRef:
                name: postgres-config
          # Use volume for storage
          volumeMounts:
            - mountPath: /var/lib/postgresql/data
              name: postgredb
      # We can use PersistentVolume or PersistentVolumeClaim.
      # In this sample we are useing PersistentVolumeClaim
      volumes:
        - name: postgredb
          persistentVolumeClaim:
            # reference to Pre-Define PVC
            claimName: postgres-pv-claim

Note: You can use the kustomization file to create or apply all the above resources

# Generate and apply the required resources using kustomization
kubectl kustomize PostgreSQL/ | kubectl apply -f -

03. Test the Stateful application

  • Use the - testDB.sh to test the StatefulSet
  • Don’t forget to set the execution flag chmod +x testDb.sh if required
### Test to see if the StatefulSet "saves" the state of the pods

# Programmatically get the port and the IP
export CLUSTER_IP=$(kubectl get nodes \
            --selector=node-role.kubernetes.io/control-plane \
            -o jsonpath='{$.items[*].status.addresses[?(@.type=="InternalIP")].address}')

export NODE_PORT=$(kubectl get \
            services postgres \
            -o jsonpath="{.spec.ports[0].nodePort}" \
            -n codewizard)

export POSTGRES_DB=$(kubectl get \
            configmap postgres-config \
            -o jsonpath='{.data.POSTGRES_DB}' \
            -n codewizard)

export POSTGRES_USER=$(kubectl get \
            configmap postgres-config \
            -o jsonpath='{.data.POSTGRES_USER}' \
            -n codewizard)

export PGPASSWORD=$(kubectl get \
            configmap postgres-config \
            -o jsonpath='{.data.POSTGRES_PASSWORD}' \
            -n codewizard)

# Check to see if we have all the required variables
printenv | grep POST*

# Connect to postgres and create table if required.
# Once the table exists - add row into the table
# you can run this command as amny times as you like
psql \
    -U ${POSTGRES_USER} \
    -h ${CLUSTER_IP} \
    -d ${POSTGRES_DB} \
    -p ${NODE_PORT} \
    -c "CREATE TABLE IF NOT EXISTS stateful (str VARCHAR); INSERT INTO stateful values (1); SELECT count(*) FROM stateful"

04. Scale down the StatefulSet and check that its down

04.01. Scale down the Statefulset to 0

# scale down the `Statefulset` to 0
kubectl scale statefulset postgres -n codewizard --replicas=0

04.02. Verify that the pods Terminated

# Wait until the pods will be terminated
kubectl get pods -n codewizard --watch
NAME         READY   STATUS    RESTARTS   AGE
postgres-0   1/1     Running   0          32m
postgres-0   1/1     Terminating   0      32m
postgres-0   0/1     Terminating   0      32m
postgres-0   0/1     Terminating   0      33m
postgres-0   0/1     Terminating   0      33m

04.03. Verify that the DB is not reachable

  • If the DB is not reachable it mean that all the pods are down
psql \
    -U ${POSTGRES_USER} \
    -h ${CLUSTER_IP} \
    -d ${POSTGRES_DB} \
    -p ${NODE_PORT} \
    -c "SELECT count(*) FROM stateful"

# You should get output similar to this one:
psql: error: could not connect to server: Connection refused
        Is the server running on host "192.168.49.2" and accepting
        TCP/IP connections on port 32570?

05. Scale up again and verify that we still have the prevoius data

05.01. scale up the Statefulset to 1 or more

# scale up the `Statefulset`
kubectl scale statefulset postgres -n codewizard --replicas=1

05.02. Verify that the pods is in Running status

kubectl get pods -n codewizard --watch
NAME         READY   STATUS    RESTARTS   AGE
postgres-0   1/1     Running   0          5s

05.03. Verify that the pods is using the previous data

psql \
    -U ${POSTGRES_USER} \
    -h ${CLUSTER_IP} \
    -d ${POSTGRES_DB} \
    -p ${NODE_PORT} \
    -c "SELECT count(*) FROM stateful"
# The output should be similar to this one

 count
-------
     2
(1 row)
