Roles

What are Ansible roles?

  • Roles let you automatically load related vars, files, tasks, handlers, and other Ansible artifacts based on a known file structure.
  • After you group your content into roles, you can easily reuse them and share them with other users.
  • By default, Ansible will look in each directory within a role for file names main/main.yml/main.yaml.

Ansible roles file structure

Files Description
tasks the main list of tasks that the role executes.
handlers handlers, which may be used within or outside this role.
library modules, which may be used within this role (see Embedding modules and plugins in roles for more information).
defaults default variables for the role (see Using Variables for more information).
These variables have the lowest priority of any variables available and can be easily overridden by any other variable, including inventory variables.
vars other variables for the role (see Using Variables for more information).
files files that the role deploys.
templates templates that the role deploys.
meta metadata for the role, including role dependencies and optional Galaxy metadata such as platforms supported.

Building Ansible role

  • In this demo we will create a role for deploying a nodeJS app
  • The app will be deployed from a pre-defined code.
  • Each server will be deployed with its own configuration (values)
  • We will also deploy some other files for learning purposes

01. Initialize file structure

# Lets create the roles file structure
ansible-galaxy init codewizard_lab_role

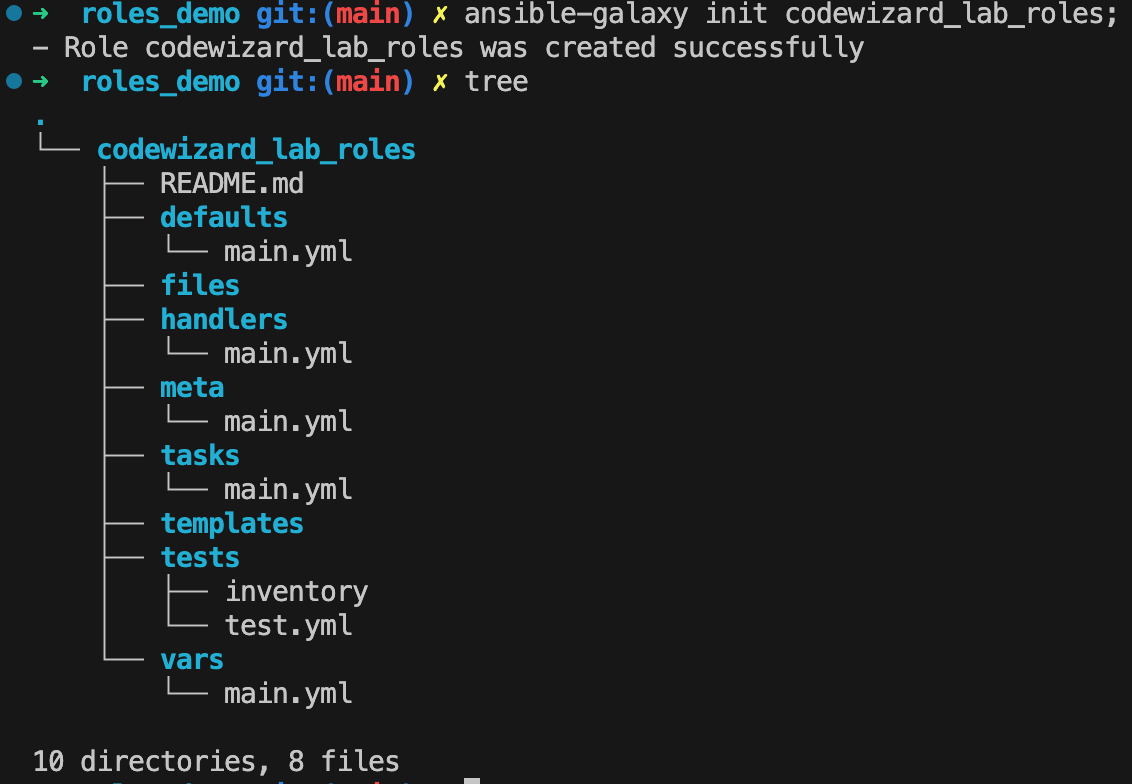

# The file system of the role will look like

02. Create the role content

02.01. Create the defaults/main.yml

---
### defaults/main.yml
###
### This file contain the variables for the Demo lab
###

# Defaults file for codewizard_lab_role
motd_message: "Welcome to Ansible Roles Lab"

### The package we wish to install on the servers
apt_packages:
  - python3
  - nodejs
  - npm

# Packages to verify that they were installed
apt_packages_verify:
  - python3
  - npm

package_state: latest

02.02. Create the templates

### templates/motd.j2

_____             _          _    _  _                      _
/  __ \           | |        | |  | |(_)                    | |
| /  \/  ___    __| |  ___   | |  | | _  ____ __ _  _ __  __| |
| |     / _ \  / _` | / _ \  | |/\| || ||_  // _` || '__|/ _` |
| \__/\| (_) || (_| ||  __/  \  /\  /| | / /| (_| || |  | (_| |
\____/ \___/  \__,_| \___|   \/  \/ |_|/___|\__,_||_|   \__,_|

{{ motd_message }}

System information:
-------------------

OS:         {{ ansible_distribution }} {{ ansible_distribution_version }}
Hostname:   {{ inventory_hostname }}

{{ custom_message | default('') }}
### templates/node-server.j2
const
    // Set the server port which will be listening to
    // Those 2 values are passed from the env file
    SERVER_PORT = 5000,
    SERVER_NAME = "{{ inventory_hostname }}";

// Create the basic http server
require('http')
    .createServer((request, response) => {

        // Send reply to user
        response.end(`<h1>Hello from ${SERVER_NAME}.</h1>`);

    }).listen(SERVER_PORT, () => {
        // Notify users that the server is up and running
        console.log(`${SERVER_NAME} is up.
            Please click or point your browser to:
            http://localhost:${SERVER_PORT}`);
    });

02.03. Create the tasks for the role

  • In this example we will have multiple tasks for learning purposes
  • We will need to create the tasks for each role
  • Once the task are ready we can define them in the main task file
### tasks/pre-requirements.yaml
---
- name: Install Packages
  ansible.builtin.apt:
    name: "{{ item }}"
    state: "{{ package_state }}"
  # Loop over the required packages to install
  with_items: "{{ apt_packages }}"

- name: Verify Packages Installation
  ansible.builtin.command: "{{ item }} --version"
  register: packages_version
  with_items: "{{ apt_packages_verify }}"

- name: Print package version
  ansible.builtin.debug:
    msg: "{{ item.stdout_lines  }}"
  with_items: "{{ packages_version.results }}"
### tasks/node-server.yaml
---
- name: Copy Node server
  ansible.builtin.template:
    src: templates/node-server.j2
    dest: /node-server.js
    mode: 600
  become: true
  become_method: ansible.builtin.su

- name: Install "pm2" node.js package.
  community.general.npm:
    name: "pm2"
    global: true
  become: true
  become_method: ansible.builtin.su

- name: Get running node processes
  shell: "ps -ef | grep -v grep | grep -w node | awk '{print $2}'"
  register: running_processes

- name: Kill running node server (if any)
  shell: "kill {{ item }}"
  with_items: "{{ running_processes.stdout_lines }}"

- name: Wait for the process to die
  wait_for:
    path: "/proc/{{ item }}/status"
    state: absent
  with_items: "{{ running_processes.stdout_lines }}"
  ignore_errors: true
  register: killed_processes

- name: Force kill stuck processes
  shell: "kill -9 {{ item }}"
  with_items: "{{ killed_processes.results | select('failed') | map(attribute='item') | list }}"

- name: Start Node server
  ansible.builtin.command:
    chdir: /
    cmd: "pm2 start -f /node-server.js"
  register: server_status
  changed_when: server_status.rc != 0

- name: Print server status
  ansible.builtin.debug:
    msg: "{{ server_status.stdout_lines }}"
  when: server_status.rc == 0

- name: Check server
  uri:
    url: http://localhost:5000
    method: GET
    status_code: 200
  register: server_status

- name: Print server status
  ansible.builtin.debug:
    msg: "{{ server_status.status }} - {{ server_status.msg }}"
  ```

  ```yaml
  ### tasks/motd.j2
  ---
  - name: Copy template
    ansible.builtin.template:
      src: templates/motd.j2
      dest: /etc/motd
      mode: preserve
    become: true
    become_method: ansible.builtin.su
  ```

  ```yaml
  ### tasks/main.yml
  ---
  - name: Include Pre-Requirements task
    ansible.builtin.include_tasks:
      file: pre-requirements.yaml

  - name: Include motd task
    ansible.builtin.include_tasks:
      file: motd.yaml

  - name: Deploy node server
    ansible.builtin.include_tasks:
      file: node-server.yaml
  ```

#### 02.04. Create the playbook for the role

```yaml
### 009-role-playbook.yml
---
###
### The playbook for using our role
###
- name: Executing codewizard_lab_role
  hosts: all
  become: true
  become_method: ansible.builtin.su

  roles:
    - codewizard_lab_role
